A 4WD that runs hot out on the track rarely gives you much warning. One small leak, a weak hose, a tired cap or a radiator partly blocked with mud can turn a solid touring rig into a recovery job. If you want to know how to inspect cooling system condition properly, you need to look beyond the coolant bottle and give the whole setup a careful check.
For Perth drivers, that matters even more. Heat, towing loads, slow low-range work and long-distance touring all put extra strain on a cooling system. What seems fine around town can start showing its weak points once the vehicle is working hard.
How to inspect cooling system parts before they cause trouble

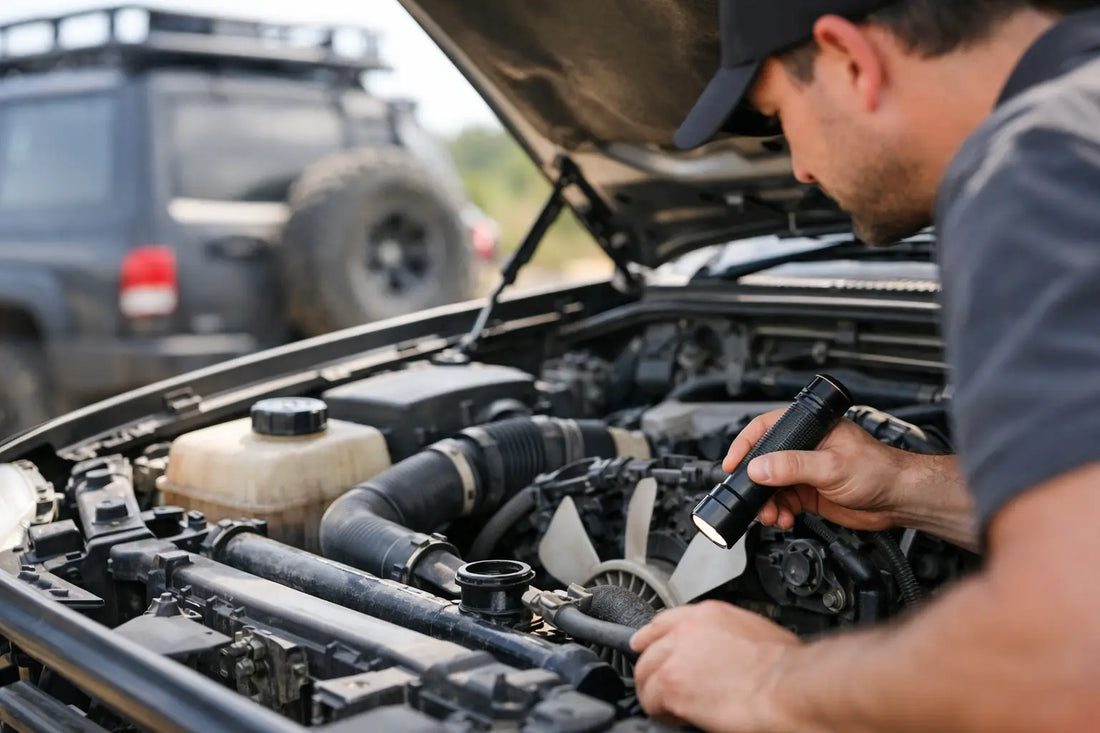

A proper cooling system inspection starts with the engine cold. Never remove a radiator cap on a hot engine. Let it cool fully, park on level ground and open the bonnet with good light. If the vehicle has been used off-road recently, it also helps to rinse away built-up mud and dust first so you can actually see what is going on.
Start with the basics - coolant level and visible condition. Check the overflow bottle and, where accessible, the radiator itself. Coolant should sit at the correct level and look clean. If it is rusty, cloudy, oily or full of sediment, that is a sign the system needs closer attention. Low coolant by itself does not tell you much. The key question is why it is low.
Next, inspect the radiator. Look over the tanks, seams and core for stains, damp spots or crusty residue. Those white or coloured deposits often point to a slow leak. On a 4WD, the outside of the radiator also cops plenty of abuse. Grass seeds, insects, bulldust and mud can block airflow through the fins, especially if the vehicle has been doing remote tracks or creek crossings. Bent fins are common too. A few are not the end of the world, but widespread damage reduces cooling efficiency.
Check hoses, clamps and connections
Radiator hoses and heater hoses deserve close attention. Squeeze the hoses when the engine is cold. They should feel firm but still flexible, not rock hard, brittle, swollen or spongy. Cracks around the ends are common, especially near hose clamps where rubber ages faster.
Look at the clamps and fittings for staining or dried coolant marks. A hose does not need to be dripping to be a problem. A slight weep can become a major leak once system pressure rises on a hot day or while towing. If a hose looks original on an older vehicle, it is worth being realistic about its remaining life. Touring is not the place to find out it was one trip too many.
Inspect the radiator cap and overflow system
The radiator cap is one of the most overlooked parts in the system, and one of the cheapest to replace. Its job is to hold the correct pressure. If it cannot do that, coolant can boil at a lower temperature and get pushed into the overflow bottle too early.
Check the cap seal for cracks, flattening or corrosion. Also inspect the neck where the cap fits. Damage there can stop the system sealing properly. Then look at the hose between the radiator and overflow bottle. If that hose is split, blocked or loose, coolant may not return to the radiator as it should once the engine cools down.
How to inspect cooling system performance, not just parts
A visual check is only half the job. Some cooling problems do not show up until the engine is under load or up to temperature. That is where experience matters, because the system can look tidy but still be underperforming.
With the engine running and warmed up, watch the temperature gauge. It should come up steadily and stay stable. If it climbs higher than normal in traffic, while towing or on long inclines, there may be an airflow issue, restricted radiator, fan problem or thermostat issue. If it runs too cool, that can also point to a thermostat fault.
Listen and look at the fan operation. On vehicles with a viscous fan hub, check for signs it is not engaging properly when hot. On electric fan systems, make sure the fans are cycling as they should. A fan that does not cut in at the right time can quickly cause overheating in stop-start driving or slow off-road work.
Then check for circulation issues. Depending on the vehicle, cold spots across the radiator can suggest internal blockage. Coolant flow problems can also come from scale build-up, old sealant contamination or a water pump that is no longer doing its job properly.
Watch for water pump and thermostat warning signs
The water pump does not always fail in one dramatic moment. Often it starts with a slight coolant leak from the weep hole, noise from the bearing or poor circulation. Look around the pump area for stains, dampness or thrown coolant residue. If there is play or noise, do not ignore it.
Thermostats can be harder to assess without testing, but there are clues. If the engine takes too long to warm up, runs inconsistently, or suddenly spikes in temperature, the thermostat may be sticking. On some 4WDs, especially older ones, a thermostat can work fine most of the time and still give trouble under heavy load.
Common 4WD cooling system issues after off-road use
A standard road inspection is not enough for a 4WD that sees dirt, corrugations and water. Off-road conditions bring their own problems, and they often show up after the trip rather than during it.
Mud packed into the radiator and condenser is a big one. It restricts airflow and can hold moisture against metal parts. Water crossings are another. They can leave behind silt, damage fan blades if entered too hard, and accelerate wear in bearings and electrical connections. Corrugations can loosen clamps and expose weak hoses. Even a small stone strike can start a radiator leak that only becomes obvious later.
If your vehicle tows a van, carries a constant canopy setup or runs added accessories like driving lights and winches, cooling demands rise again. Extra weight and reduced airflow can expose a system that is only just coping. That is why a touring 4WD should be inspected with its actual use in mind, not treated like a stock vehicle doing school runs.
When a pressure test is worth doing
If coolant level keeps dropping and there is no obvious leak, a pressure test is the next sensible step. This checks whether the system can hold pressure and often reveals leaks that do not show up in a quick visual inspection. It can also help identify issues with the radiator cap, heater core, hose joints and other fittings.
In some cases, further testing may be needed. Combustion gas in the cooling system, unexplained coolant loss or repeated overheating can point to deeper engine issues. It depends on the symptoms. The main thing is not to keep topping it up and hoping for the best.
What owners can check and when to book it in
There is plenty a 4WD owner can inspect at home if they are methodical. Coolant level, hose condition, clamp security, external radiator blockage, overflow bottle condition and visible leaks are all sensible checks before a trip. So is paying attention to any change in the temperature gauge, heater performance or coolant smell.
But if you find contamination, repeated coolant loss, overheating under load or signs of pump, fan or thermostat trouble, it is time for a proper workshop inspection. Modern cooling systems are less forgiving than many people think, and overheating can get expensive quickly.
For vehicles used in harsh WA conditions, it also makes sense to include cooling system checks as part of regular servicing rather than waiting for a problem. At Robson Brothers 4WD, that is part of looking at the vehicle as a working 4WD, not just another car on the hoist. Touring vehicles, tow rigs and work utes all put different demands on the system, and the inspection should reflect that.
A good cooling system does not ask for much attention when it is healthy. That is exactly why it gets neglected. Give it a proper look before your next big run, because finding a weak point in the workshop is always better than finding it two hours past the last roadhouse.
